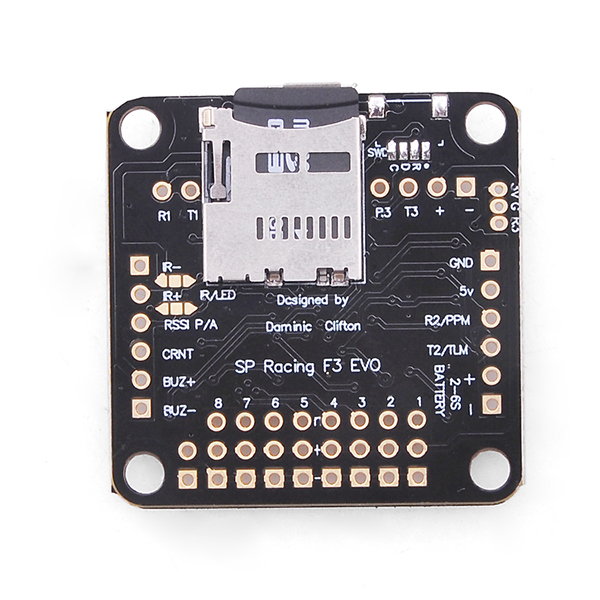

The port cannot be used at the same time as UART2. 16 PWM I/O lines for ESCs, Servos and legacy receivers. Voltage as-supplied by BEC OR USB, always on Next-generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster ARM-Cortex M4 core Stackable design perfect for integrating with power distribution boards. When RX_PPM/RX_SERIAL is used the IO_2 pinout is as follows. The 8 pin IO_2 connector has the following pinouts when used in RX_PARALLEL_PWM mode. When RX_PPM/RX_SERIAL is used the IO_1 pinout is as follows. Pinģ.3v output for LOW CURRENT application only The 8 pin IO_1 connector has the following pinouts when used in RX_PARALLEL_PWM mode.
Power other devices of and/or disconnect them.įull pinout details are available in the manual, here:
Also available on a USART1 JST connector and on through hole pins.Īvailable on IO_2, USART3 JST port and through hole pins. Internally connected to USB port via CP2102 IC. Barometer mounted on the bottom of the board for easy wind isolation.Use either right-angled or straight pin-headers. Wire up using using pin headers, JST-SH sockets or solder pads.Symmetrical design for a super tidy wiring.Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.Solder pads in addition to connectors for Sonar, PPM, RSSI, Current, GPIO, LED Strip, 3.3v,.Buzzer port for audible warnings and notifications.Battery monitoring ports for voltage and current.Dedicated I2C port for connection of OLED display without needing flight battery.Dedicated output for programmable LEDs - great for orientation, racing and night flying.No external inverters required (built-in). Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers.16 PWM I/O lines for ESCs, Servos and legacy receivers.Stackable design - perfect for integrating with OSDs and power distribution boards.Next-generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster ARM-Cortex M4 core.On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.
Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!
SP RACING F3 PRO

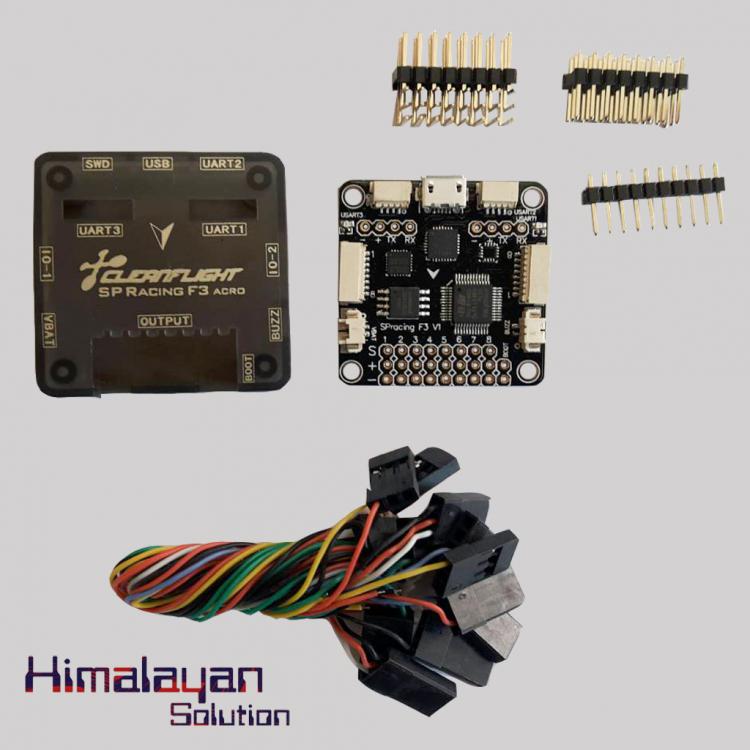

Purchasing boards directly from SeriouslyPro / SP Racing and official retailers helps fund Cleanflight development, it's the reason the Seriously Pro boards exist! Official retailers are always listed on the website.įull details available on the website, here: When using a PWM receiver connect CH1/2/5/6 to PWM RX. IO1 connector - PWM RX / PPM RX / GPIO / LED Strip. No external inverters required (built-in).The Seriously Pro Racing F3 board (SPRacingF3) is the first board designed specifically for Cleanflight. SP Racing F3 FC Board(Deluxe) internal OSD.
SP RACING F3 FULL
Connect your OSD + Smartport + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors all at the same time! Loop times up to 2x as fast as previous-generation STM32F1 based boards.The SP Racing F3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor(FPU) for efficient flight calculations that get more done in less time.Integrated OSD, buzzer, I2C port, sonar, battery monitoring, programmable LED, broad RC receiver etc. This SP Racing F3 Flight Controller Integrate OSD Deluxe is designed to give awesome flight performance based on tried and tested sensors while also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU. SP Racing F3 flight controller board integrated OSD Acro standard version for FPV racing flight control. What is the SP Racing F3 Flight controller The Seriously Pro Racing F3 Flight Controller (SPRacingF3) was created to provide awesome flight performance based on tried and tested sensors, as well as unparalleled I/O capabilities in a small and extremely lightweight form factor using a next-generation CPU in a small and extremely lightweight.
